Overview

Standing at just 49cm tall, the Eclipse 5™ is one of the most technologically advanced oxygen concentrator systems in the world today.

The on-board control panel is feature rich, yet easy to use offering both continuous flow and pulse dosing options, great for use during the day and whilst sleeping at night.

The Eclipse 5™ comes with a “fine-tuning option” tailoring the speed of which oxygen is delivered on pulse dose in accordance to the patient’s respiratory requirements. Coupled with this is the Eclipse’s autoSAT® technology; a pulse delivery system which maintains a consistent pulse dose volume for every breath as the patient’s respiratory rate changes.

With the option to toggle between pulse flow and continuous flow, patients who suffer from sleep apnoea will certainly benefit from this all-in-one solution.

With its robust design and an array of optional accessories available, the Eclipse 5™ is the ideal travel companion for users preferring an all-round solution.

Tech spec

How much oxygen does it produce?

1 to 9

Pulse Flow Settings

0.5 to 3

LPM Continuous Flow

The Eclipse 5 produces oxygen with a concentration of 90% -3% /+ 5.5%. Mode and flow settings is easily adjusted via the control panel.

How much does it weigh?

18.4lbs

8.3kg

The weight is based on with the power cartridge inserted. Supplied with a large wheel cart with telescopic handle for easy transportation.

How long does the battery last?

Setting 1

5.25

0.5 LPM

4.25

Battery recharge time: 2-5 hours Battery run-times are approximate and is dependent on breathing rate.

How noisy is it?

40db(A)

at Setting 3

Power

100-240v

50/60Hz

Quiet operation. As a guide, the Eclipse 5 should be barely noticeable in a quiet restaurant when placed beside you on the ground.

Use this device anywhere around the world. Comes with DC power supply for use in a car.

  • HEIGHT

    19.3in.

    49.0cm

  • WIDTH

    12.3in.

    31.2cm

  • DEPTH

    7.1in.

    18.0cm

  • 3 Year Warranty
  • Warranty covers parts & labour for 3 years. Batteries & accessories 1 year
  • Airline Approved
  • This device is approved for Air travel subject to the carrier’s terms & conditions
  • Learn more
  • Compatible with a ventilator device
  • Whilst this device may be suitable for use during sleep on pulse flow mode, it can also be used in conjunction with a CPAP or BiPAP device on continuous flow mode.

Key Features

Our most advanced Oxygen Concentrator

Easy to use control panel with LCD display showing battery remaining and the current setting. Settings can be changed easily between pulse and continuous modes as well changing the flow by using the plus and minus buttons. The pulse flow delivery on the Eclipse 5 can also be fine-tuned to provide a slower or faster pace of delivery in conjunction with the individual’s respiratory needs.

Long life battery

The battery for Eclipse 5™ slots neatly into the base of the machine. The battery can last up to nearly 5 1/2 hours on a single charge. The battery can be re-charged whilst inserted in the machine or independently using the optional desktop charger.

Optional protective cover

Protect the Eclipse 5 from cosmetic damage and rain with this handy accessory.

Optional humidifier kit

This optional accessory is perfect for keeping oxygen moist and prevent the nasal cavities from becoming dry. This is most ideal for sleeping whilst the concentrator is set to continuous flow mode.

Reviews

Richard B

November 2022
% of
(5 Rating)

The oxygen concentrator arrived the next day, in perfect condition

Read More

Duncan M

November 2022
% of
(5 Rating)

A very friendly, professional and efficient service

Read More

David M

November 2022
% of
(5 Rating)

Excellent service. Wanted a trolley for my oxygen tank as it was too heavy and cumbersome for me. I ordered one day and it arrived the next. Top quality item at a really good price. I highly recomm...

Read More

Peter C

November 2022
% of
(4 Rating)

I purchase a Mini-Wright peak flow meter similar to the ones in Doctors' surgeries from Intermedical. I was pleased to find this firm as Google searching for this product only produced device...

Read More

brian d

November 2022
% of
(5 Rating)

I ordered an oxygen trolley from Intermedical Homecare and I am extremely pleased with the quality. It is strong and very manoeuvrable the best I've found after using lesser products for years...

Read More

Dag

October 2022
% of
(5 Rating)

Fits my nose and is high flow thank you

Read More

Gwen

October 2022
% of
(4 Rating)

Straightforward ordering process. Goods came quickly and meet expectations. I was actually delighted to find a customised trolley for my oxygen concentrator since it's so heavy and carrying ...

Read More

Anonymous

October 2022
% of
(5 Rating)

All aspects of my purchase from ordering to receiving were v. Good. will definitely recommend.

Read More

Anonymous

October 2022
% of
(5 Rating)

I bought the Eclipse 5 two years ago and am still over the moon with it. It gives me the option to change the battery, I use it with a 15m tube so that it runs upstairs and into the shower and it i...

Read More

Keith

September 2022
% of
(5 Rating)

Items exactly as described and prompt delivery

Read More

JOHN S

September 2022
% of
(5 Rating)

I was initially sent in information to help me make my choice. I was guided through to my purchase and the VAT exemption. I felt comfortable all the way with the advice. Delivery was in very go...

Read More

Roy J

September 2022
% of
(5 Rating)

Excellent advice given when I telephoned, enabled me to make my choice. The online information was comprehensive and easy to understand and the ordering process was straightforward. Delivery was ...

Read More

Ms C

September 2022
% of
(5 Rating)

A very professional company from start to finish. Special thanks to Lee Denny for dealing with my queries. Delivery of my unit was made the following day after payment. I would not hesitate to reco...

Read More

Anne A

August 2022
% of
(5 Rating)

Kept me updated on delivery. It ended up being very prompt. An excellent company to deal with. Would definitely recommend with no hesitation.

Read More

Mr Mark C

August 2022
% of
(5 Rating)

Very knowledgeable and helpful staff... My G5 purchases have really helped me cope with my current condition.... Kind regards, mark

Read More

Sarah

August 2022
% of
(5 Rating)

I had purchased with you before and found the service great. This time i had a query about the tax exemption and recieved the best customer service from Lee Denny. He left a voicemail and emailed...

Read More

Deborah B

August 2022
% of
(5 Rating)

Excellent service. Battery arrived in 2 days

Read More

Judith

August 2022
% of
(5 Rating)

I've been on ambulatory oxygen for years but am lucky enough to still be pretty mobile. You are issued a strong carry bag for your oxygen but I struggle to carry the hefty weight of full cyli...

Read More

Allan M

July 2022
% of
(4 Rating)

Service and equipment good, no problems. However, on totally different subject, my wife filled out the VAT exemption form as I have Chronic COPD and Emphysema. We did get confirmation saying the...

Read More

Deborah I

July 2022
% of
(5 Rating)

Was worried about spending so much money on a concentrator that didn’t work overnight. Fears allayed! Spoke to Lee Denney and what a wonderful, professional gentleman. He was a breath of fr...

Read More

Mr Mark K

July 2022
% of
(5 Rating)

A painless transaction and pleasant staff to deal with.

Read More

Buy Now

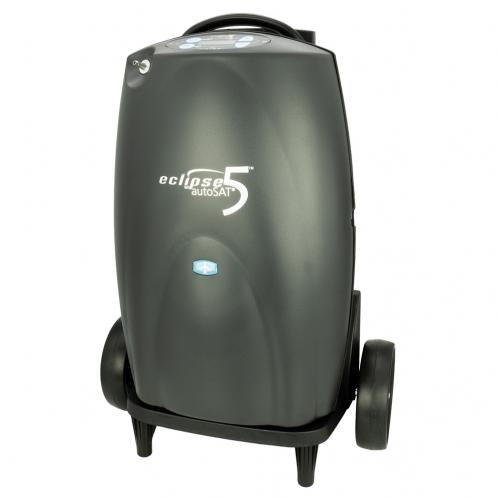

Eclipse 5 Portable Oxygen Concentrator

IN STOCK £2,290.00 £2,599.00
Included as standard:
  • Eclipse 5

  • Eclipse 5 Trolley

  • AC Power Supply

  • DC Power Supply

  • Rechargeable power cartridge

  • Accessory Bag

  • User Manual

  • Nasal Cannula

Buy this item
VAT free online

If you reside in the UK or EU and suffer from a chronic illness and/or registered disabled, you may qualify for VAT Exemption. VAT is removed upon completion of the VAT exemption declaration at checkout. For more information Click here or download our VAT exemption form here
